Vendor:Simcaddy

Flush-Mount Projector Mount (Pro-AV grade)

$385.00

Crimson JR3 SyncPro Universal Mount for Projectors with Micro Adjustment, Black, 70lb (31.8kg) Weight Capacity, 13.8" (351.5mm) Diameter Max Mounting Pattern, Micro Adjust

SyncPro This top-end projector mount is simply the easiest to install and precisely adjust without the use of tools. Rotate the large, easy to grip knobs to make all necessary adjustments during installation. Crimson lead screw adjustment mechanism is unique and precise. Heavy-duty design makes it ideal for larger projectors and/or those with an off-center lens

Pairs well with

Availability and lead times vary by product.

Personal guidance from SimCaddy before and after your purchase.

Manufacturer warranty included where applicable.

Canada-wide shipping - free on most items.

Key Features

  • Security hardware included for all connection points
  • Completely pre-assembled mounting interface for quick installation
  • Fully adjustable roll, pitch and yaw
  • Quick release mechanism allows for easy service of projector
  • Mounts to any 1.5" NPT threaded pipe
  • ADJR3 adapter extenders available to increase max mounting pattern for larger projectors
  • Pre-sorted hardware pack for easy installation

Specifications

  • Weight capacity: 70lb (31.8kg)
  • Max mounting pattern: 13.8" (351.5mm) diameter
  • Micro Adjust: Yes

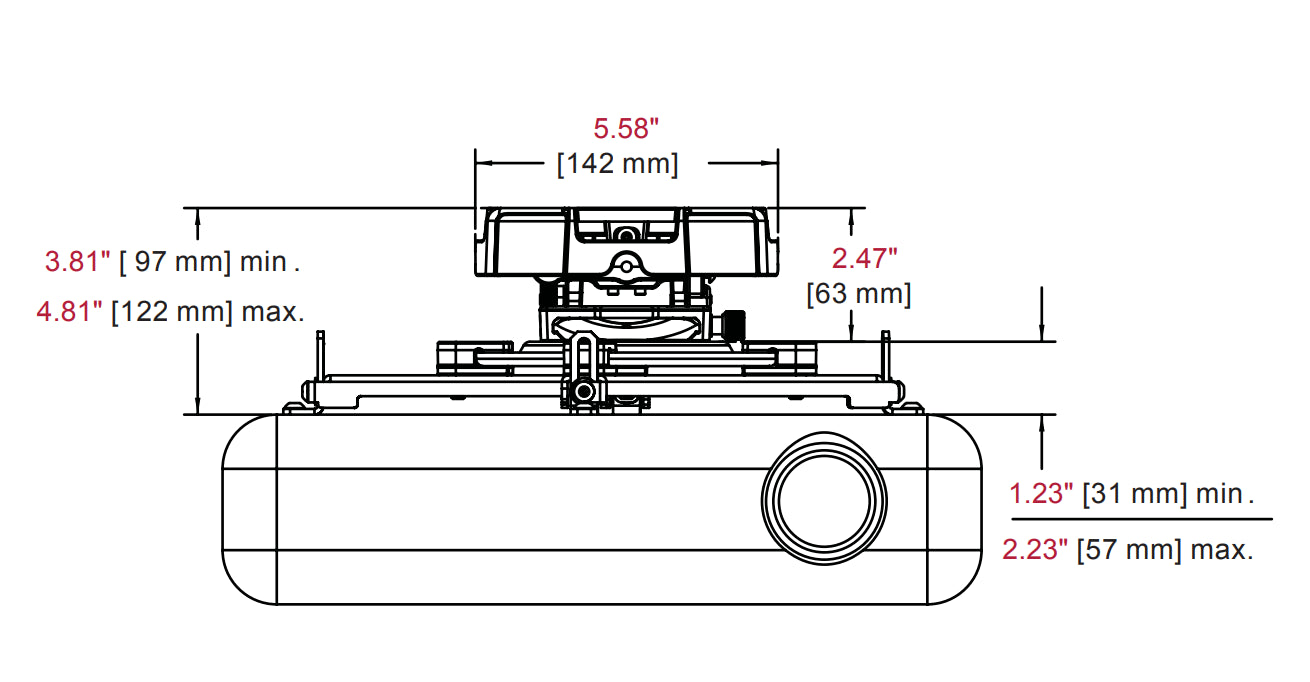

  • Height: 3.46" (88mm) from ceiling to projector surface

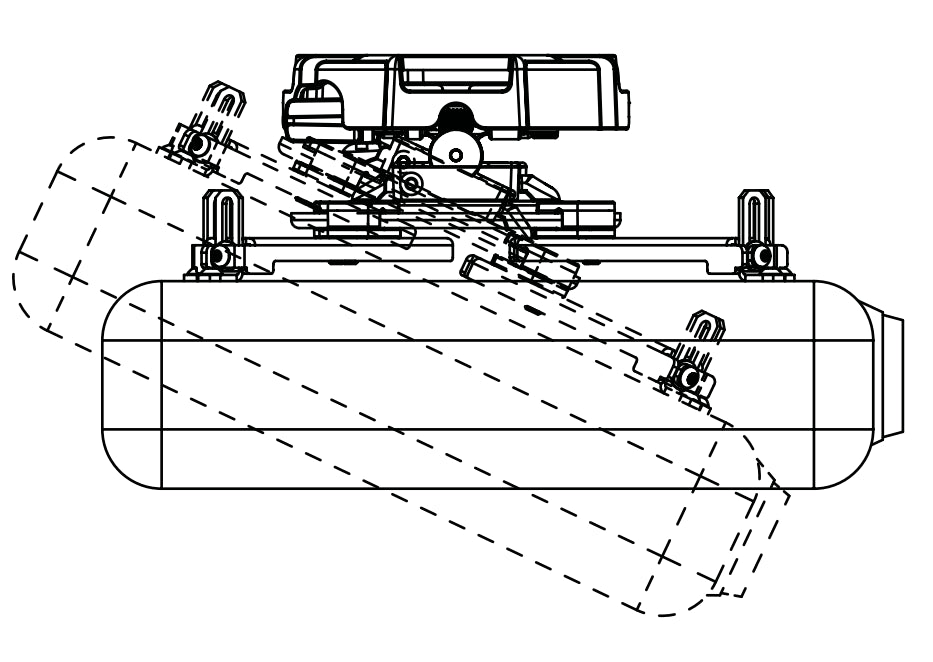

  • Pitch (up/down): +/- 15°

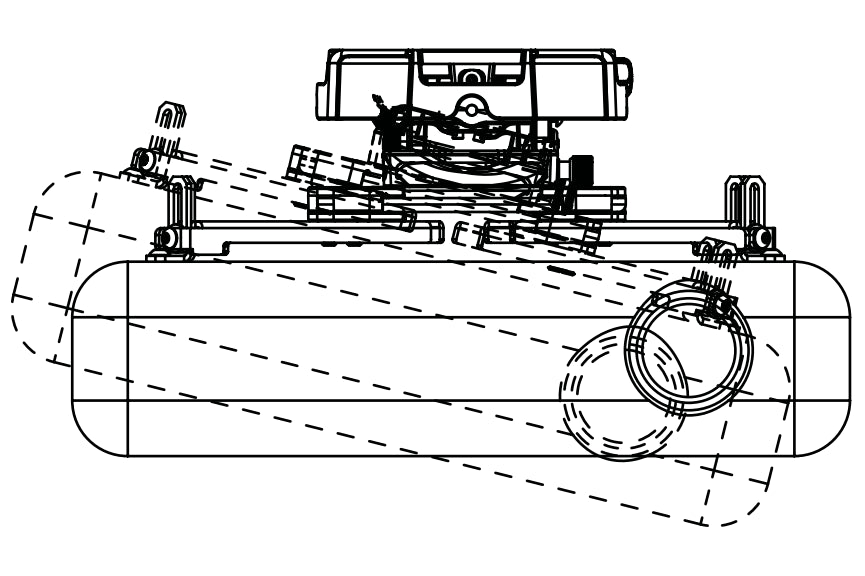

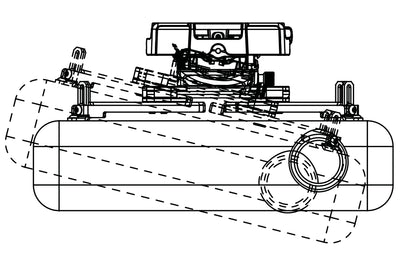

  • Roll (side to side): +/- 8°

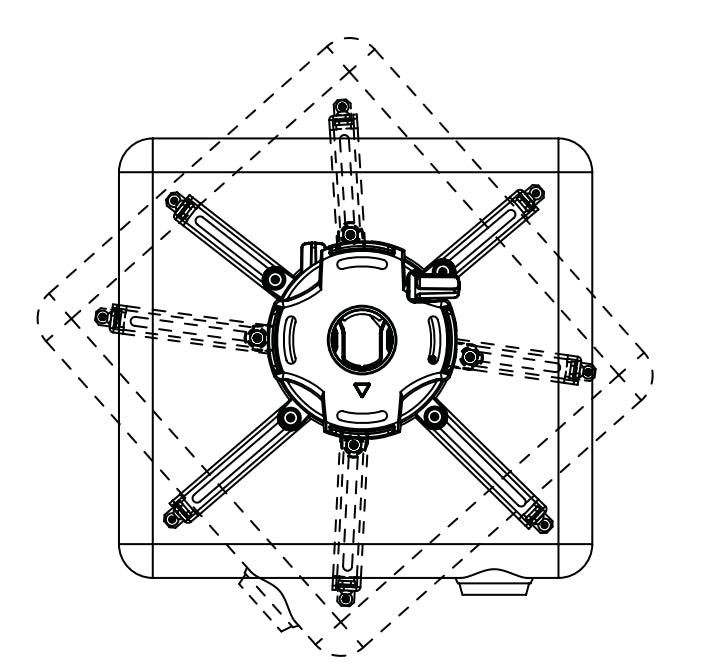

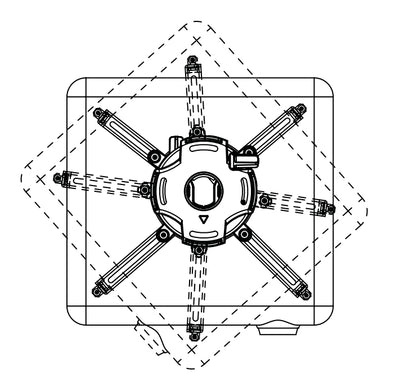

  • Rotation (yaw): 360°
  • 1.5" NPT thread compatible: Yes
  • Mounting interface: 1.5" NPT thread compatible
  • Construction: Aluminum/high-grade cold rolled steel
  • Product finish: Scratch resistant epoxy powder coat
  • Dimensions: 14" x 7" x 3"
  • Product weight: 2.2lb (1kg)
