Specifications
iO = INDOOR OPTIMIZED
Trackman iO is our first purpose-built product for the indoor game, designed with one goal in mind: to create the ultimate indoor golf experience.
STAY ON TOP OF YOUR GAME

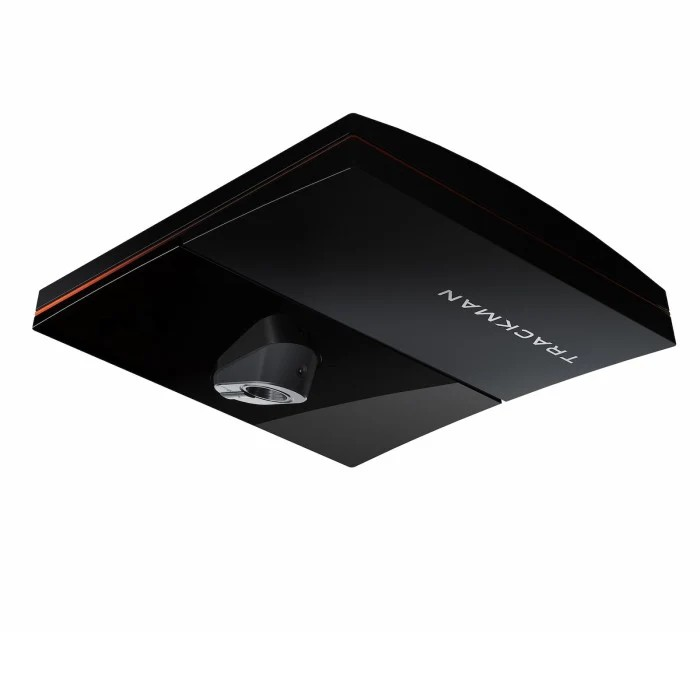

The compact, ceiling-mounted design frees up space on the floor for a clean and elegant simulator setup, with no need for additional lighting.
BALL DATA YOU CAN TRUST
Trackman iO combines radar, infrared and high-speed imaging to deliver real data — including measured 3D spin and spin axis — in real time.
FITS MORE SPACES AND BUDGETS
All you need is enough room to swing a club — there are no minimum distance requirements in front of or behind the ball.
WHY CHOOSE TRACKMAN iO?
If these factors are important to you, Trackman iO may be the right choice:
Optimized for indoor golf
- Great for casual practice
Ceiling-mounted
- No extra lighting needed
The best technology
- Patented optically enhanced radar tracking (OERT)
The best software
- Trackman Performance Studio (TPS) and powerful mobile apps
TECH SPECS
Tracking Technology Optically Enhanced Radar Tracking (OERT) for state-of-the-art accuracy
Radar Sensors 24 GHz ultra-low-power radar for optimal speed and distance measurement

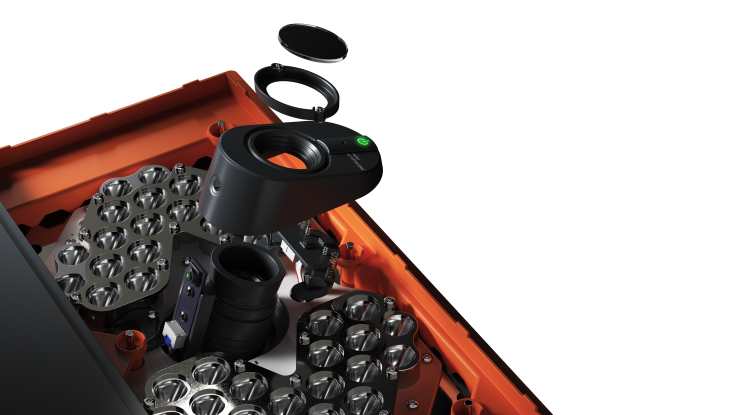

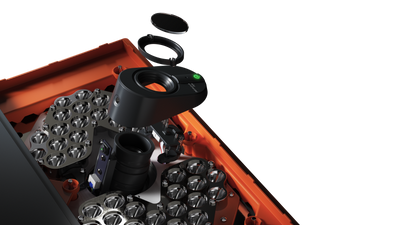

Camera Sensors Dual camera system: High-speed (up to 4,600 fps) camera for club and ball tracking — superior angular data and directly measured 3D spin Patented alignment camera for fast automatic target alignment
Light Embedded infrared light system (810–850 nm) — no need for any external lighting
Simulator Indoor optimized
Mount VESA-compatible hardware for mounting directly on ceiling or drop-down pole Minimal footprint (30 cm x 30 cm / 1 ft x 1 ft)
Putting Simulator putting
Processor Dual Trackman iO processor and PC GPU
Requirements Minimum Ceiling Height 9'-4" No markers required on club or ball
Interfaces Ethernet 10/100/1000 Mbps Base-T / RJ45
Dimensions 333 x 333 x 107 mm 13.1 x 13.1 x 4.2 in
Weight 3.9 kg / 8.6 lb
Alignment Patented target alignment using built-in camera
Power Consumption OFF (0.5 W) IDLE (7 W) Avg. during use (17 W)
Club Data Home: Club Speed
Ball Data Ball Speed, Launch Angle, Launch Direction, Spin Rate, Spin Axis, Hang Time, Height, Curve, Landing Angle, Carry, Side, Total, Side Total
Comparison
iO Home
Club Data Club Speed
Courses* 50
Games 3 (Closest to Pin, Bullseye, Magic Pond)
Shot Analysis Not Included
Price $16,995 CAD
Annual Subscription $800
iO Home Complete
Club Data Club Speed, Dynamic Loft, Club Path, Face Angle, Face to Path, Impact Height, and Impact Offset
Courses* ALL - 300+
Games ALL - 5+
Shot Analysis Included
Price $27,295 CAD
Annual Subscription $1,300 CAD
PC Requirements
Trackman iO/Duo
Desktop PC
Windows 10 (64-bit)
32 GB RAM
Intel i7 or i9 3.4 GHz
Nvidia RTX 4070Ti (HD setup)
Nvidia RTX 4090 (4K setup)
1TB SSD
2x 1GBit/s Ethernet ports
