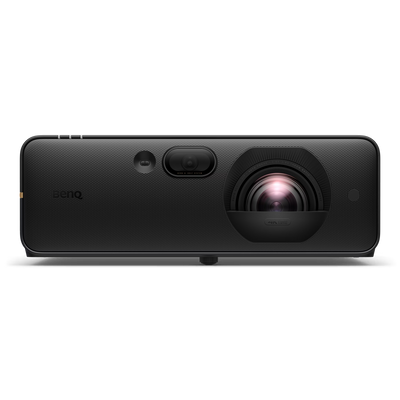

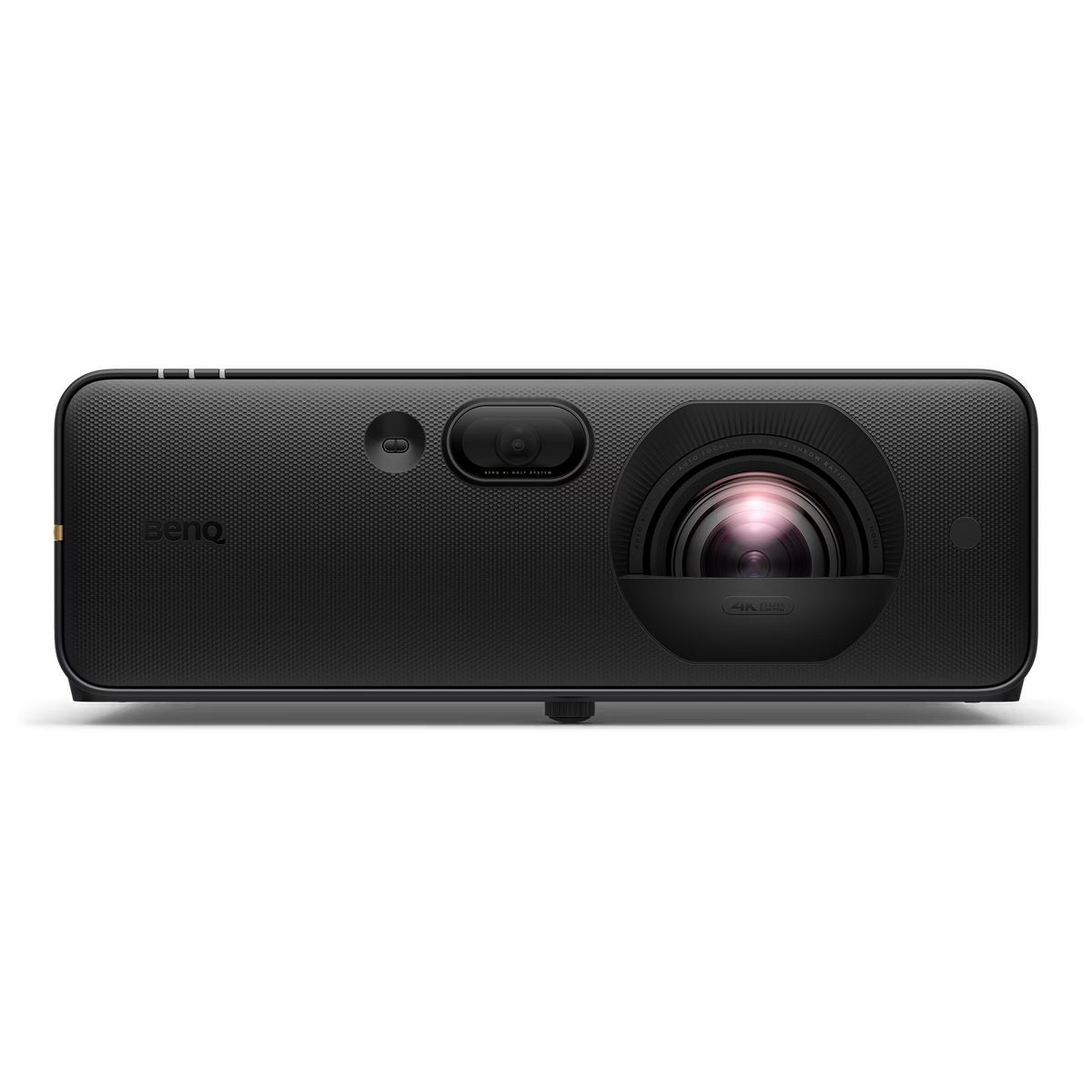

BenQ AK800ST 4K Short-Throw Laser Golf Simulator Projector with a front-facing lens and sensor module.

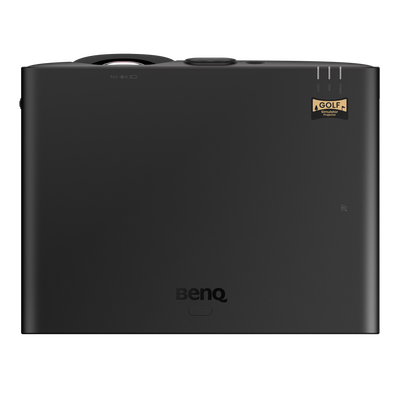

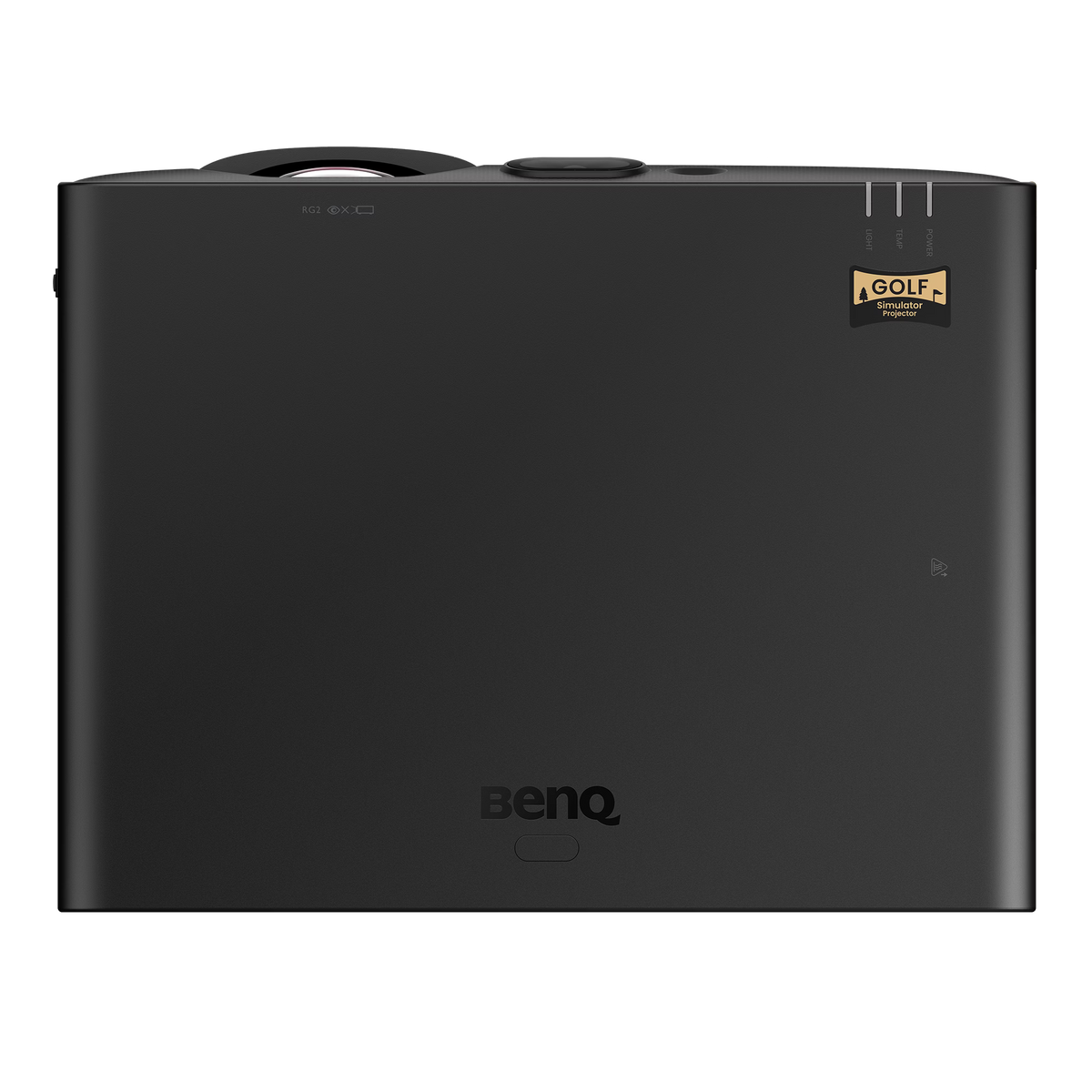

Black BenQ AK800ST 4K Short-Throw Laser Golf Simulator Projector featuring a GOLF Simulator Projector badge on the top panel.

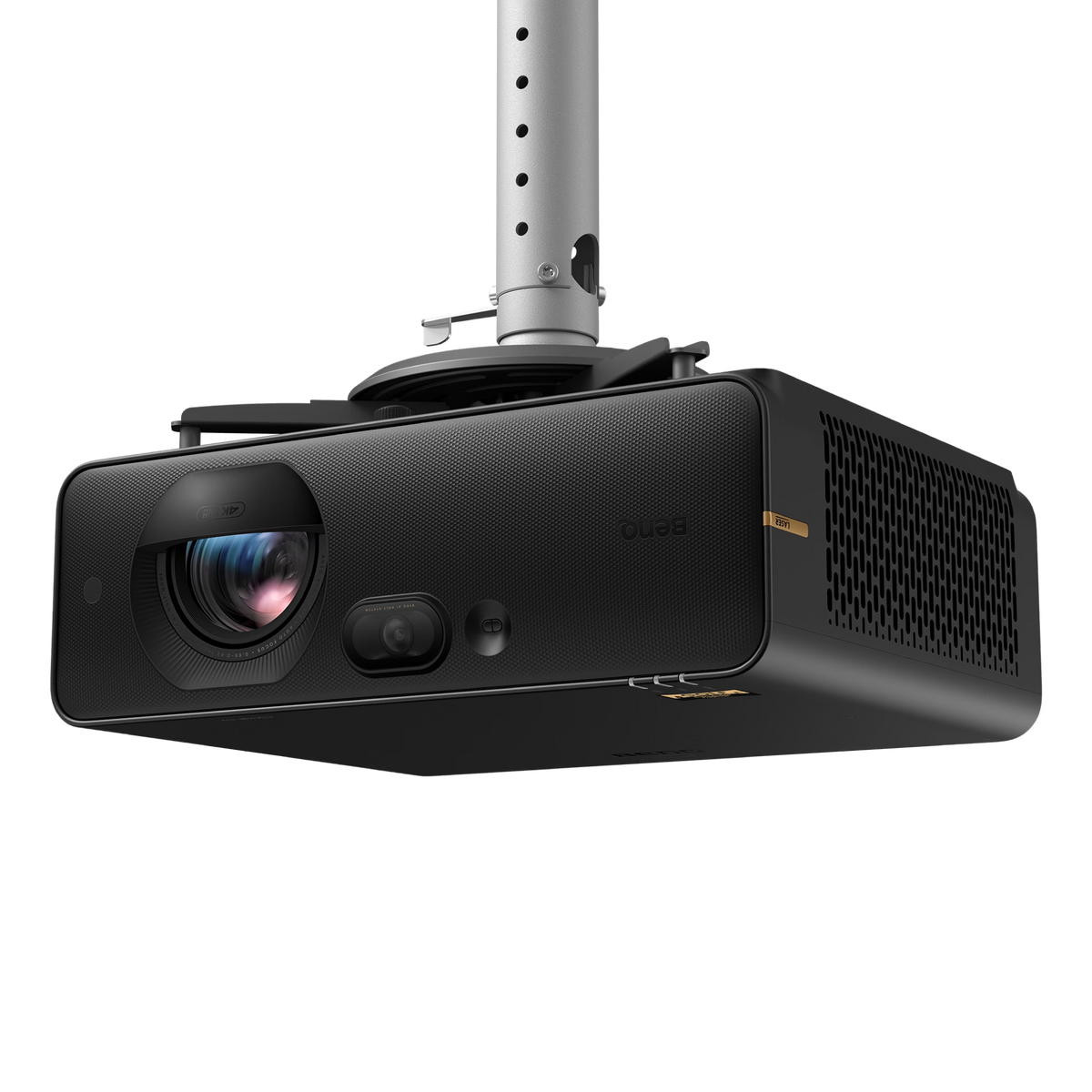

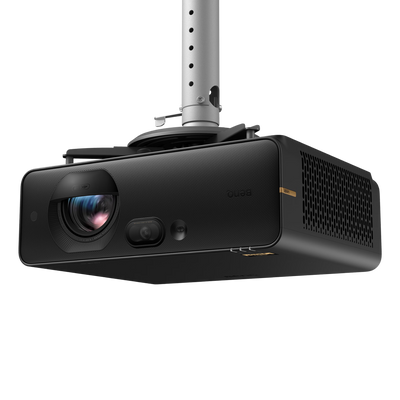

A black BenQ AK800ST 4K Short-Throw Laser Golf Simulator Projector mounted to a ceiling pole.
Black BenQ AK800ST 4K Short-Throw Laser Golf Simulator Projector shown with blue measurement lines and numerical dimensions in millimeters and inches.
Technical bottom view diagram of the BenQ AK800ST 4K Short-Throw Laser Golf Simulator Projector, indicating ceiling or wall mount screw hole locations, air inlets, air exhausts, and precise measurements in millimeters and inches.
Rear panel of the BenQ AK800ST 4K Short-Throw Laser Golf Simulator Projector showing connection ports labeled one through nine, including LAN, sync, RS-232, USB, three HDMI ports, and audio out.
A diagram showing five BenQ AK800ST 4K Short-Throw Laser Golf Simulator Projector screen sizes from 150 to 280 inches, with a table listing the corresponding distance for each 16:9 aspect ratio display.

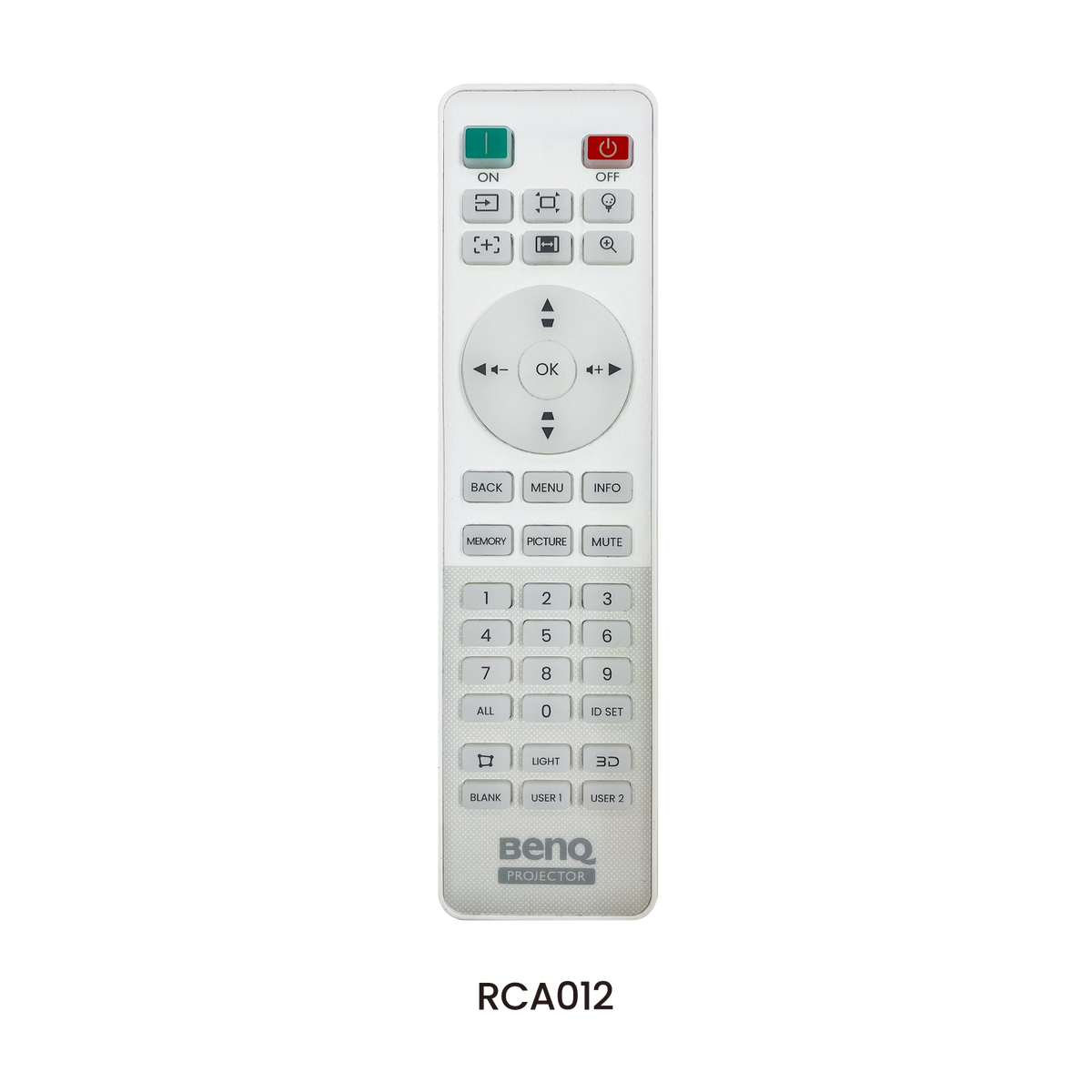

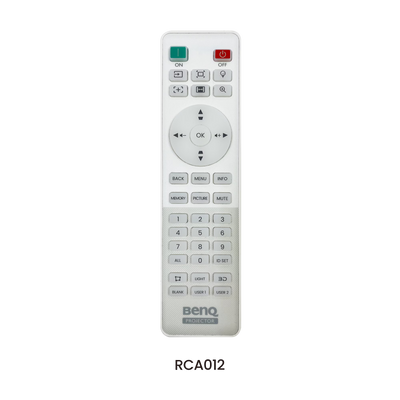

Remote control for a BenQ AK800ST 4K Short-Throw Laser Golf Simulator Projector featuring power, menu, navigation, and numeric buttons.

Vendor:Benq

BenQ AK800ST 4K Short-Throw Laser Golf Simulator Projector – 5,000 Lumens

$5,499.00

*New Product: October 2026

  • World's First AI Golf Projector: AI Sim Sense visuals and setup.
  • Hybrid Room Setup: 4K 5000lm with Golf Mode color and effortless setup.
  • Auto Screen Fit 2.0: One-press curved and flat screen alignment.

The BenQ AK800ST is a premium 4K short-throw laser projector designed specifically for golf simulators. With 5,000 ANSI lumens, true 4K UHD resolution and golf-focused image processing, it delivers a bright, detailed image that brings virtual courses to life.

BenQ’s AI Sim Sense technology analyzes and enhances golf simulator content in real time. AI-enhanced contrast, super resolution and noise reduction improve turf textures, course details and overall image clarity.

The AK800ST also simplifies setup with Auto Golf Screen Fit 2.0, motorized autofocus and automatic ambient-light adjustment. Its built-in camera detects the shape and dimensions of the impact screen—including flat and curved screens—and adjusts the projected image for a clean, properly fitted result.

The 0.69–0.83 short-throw ratio allows the projector to produce a large image from a relatively short mounting distance, helping reduce golfer shadows while providing greater installation flexibility.

Beyond golf, the AK800ST supports HDR entertainment, low-latency gaming and high-speed sports content—making it a strong choice for multipurpose simulator and entertainment rooms.

Out of stock

Accessories

Availability and lead times vary by product.

Personal guidance from SimCaddy before and after your purchase.

Manufacturer warranty included where applicable.

Canada-wide shipping - free on most items.

Blog Article: BenQ Raises the Bar for Golf Simulator Projectors – SimCaddy

Key Features

  • True 4K UHD resolution with 8.3 million pixels
  • 5,000 ANSI lumens
  • Short-throw 0.69–0.83 throw ratio
  • 1.2× optical zoom
  • BenQ AI Sim Sense image processing
  • AI Picture Quality, AI Super Resolution and AI Noise Reduction
  • Auto Golf Screen Fit 2.0
  • Automatic screen detection for flat and curved impact screens
  • One-touch motorized autofocus
  • Automatic ambient-light image adjustment
  • Dedicated Golf, Bright Golf and HDR Golf picture modes
  • 97% Rec. 709 colour coverage
  • 3,000,000:1 dynamic contrast ratio
  • Up to 30,000-hour laser-light-source life
  • Low input lag for responsive simulator and gaming performance
  • Three HDMI inputs
  • Integrated 10W speaker
  • Wireless projection support with optional wireless adapter

Technical Specifications

Display

Brightness (ANSI lumens) 5000

Resolution 4K UHD (3840×2160)

Native Aspect Ratio 16:9

Contrast Ratio (FOFO) 3,000,000:1

Display Color 30-bit (1.07 billion colors)

Light Source Laser

Light Source Life a. Normal 20000 hrs, b. ECO 30000 hrs

Screen Fill 1:1,5:4,3:2,4:3,16:9,16:10

Quick Focus Yes

Optical

Throw Ratio 0.69~0.83

Zoom Ratio 1.2x

Lens F#: 2.49(wide) ~ 2.7(Tele) f=10.31(wide) ~ 12.32(Tele)mm

Projection Offset (Full-Height) 102.5%

Keystone Adjustment 3D, Vertical ± 30 degrees; Horizontal ± 30 degrees; Rotation ± 30 degrees


Rec. 709 Coverage 97%

Picture Modes Bright Golf, Bright Presentation, HDR Golf, Bright, Cinema, Game, Golf, HDR Game, HDR10, HLG, Sports, User

Compatibility

Input Lag 18.1ms (4K 60Hz), 18.6ms (1080P 60Hz), 4.8ms (1080P 240Hz), 9.7ms (1080P 120Hz)

Resolution Support VGA (640 x 480) to 4K UHD (3840 x 2160)

Horizontal Frequency 15K~135KHz

Vertical Scan Rate 23~240Hz

I/O Interface

HDMI in HDMI-1 (2.1/HDCP2.3) (4K 60Hz/ALLM), HDMI-2 (2.1/HDCP2.3) (4K 60Hz/ALLM/Audio Return+), HDMI-3 (2.1/HDCP2.3)(4K 120Hz *downscaling to 1080p 120Hz), (x3)

LAN (RJ45) (x1)

3D Sync out (x1)

USB Type A USB Type A-1 (2.0/Power Supply 1.5A/FW Upgrade), USB Type A-2 (3.0/Power Supply3.0A/Reader), (x2)

RS232 in (DB-9pin) (x1)

Audio

Speaker (x1), 10W

Audio out (3.5mm Mini Jack) (x1)

HDMI Audio Return eARC, 7.1 channel

Environment

Operating Temperature 0~40℃

Power Supply AC 100 to 240 V, 50/60 Hz

Typical Power Consumption (110V) 285.1W

Stand-by Power Consumption <0.5W

Network Stand-by Power Consumption <2W

Acoustic Noise (Typ./Eco.) (dB)34dB/29dB

Accessories

Wireless USB dongle EZC-5201BS 1080p, (Optional)

Remote Control w/ Battery RCA012

Power Cord (by region) x1 (1.8M)

Quick Start Guide (x1) 1L

Warranty Card (by region) Yes

Universal Ceiling Mount CM00G3, (Optional)

Smart System

Wireless Projection Compatible with iOS mirroring, Google Cast, Miracast

Dimension & Weight

Dimensions (WxHxD) (mm) 387.9 * 140.0 * 301.9mm(with feet)

Net Weight (kg) 5.9Kg

Dimensions (WxHXD) (inch) 15.3 * 5.5 * 11.9 inch(with feet)

Projection System

Projection System DLP
