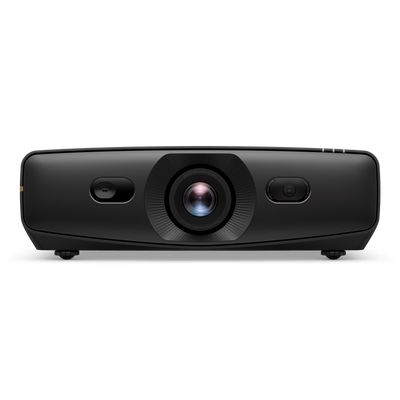

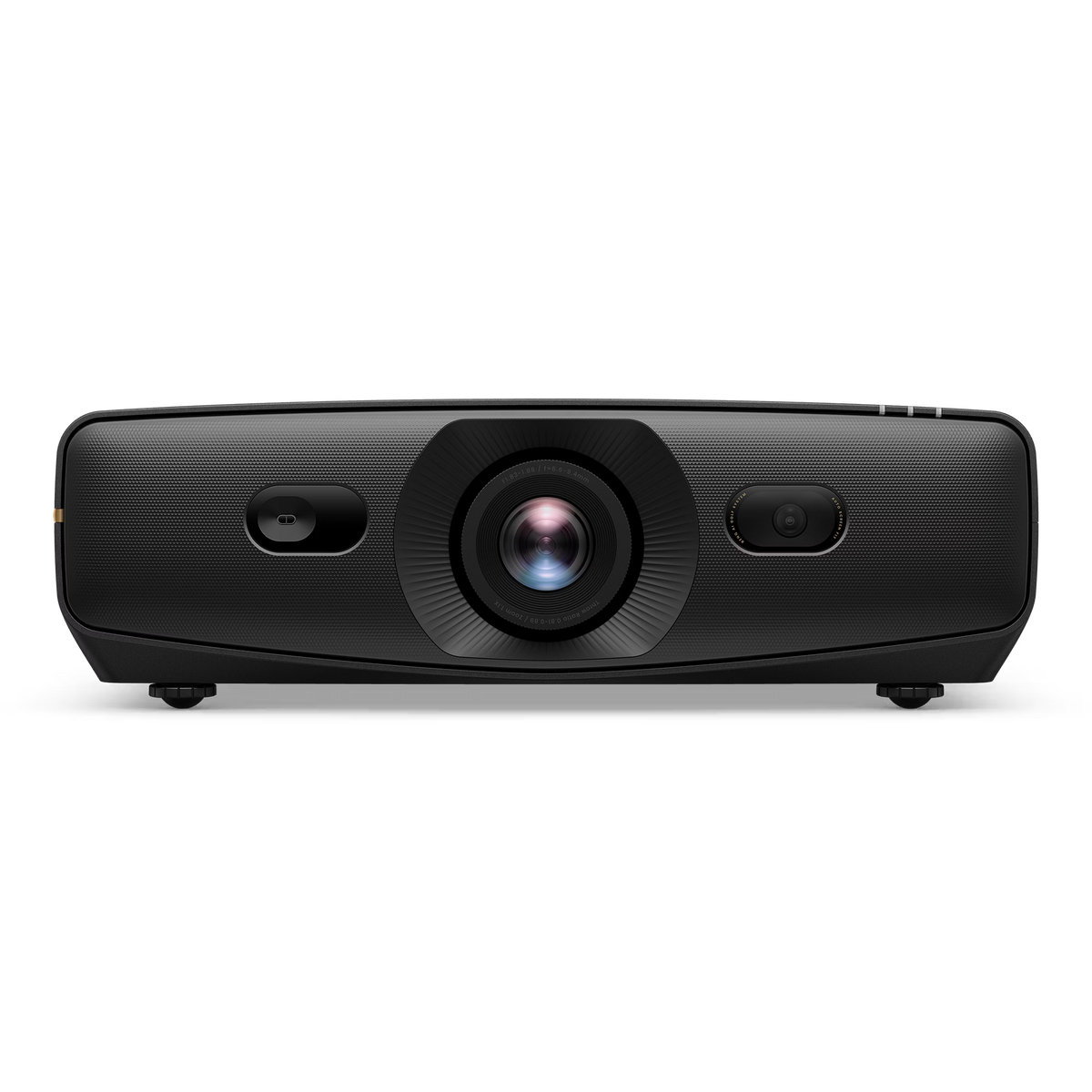

Front view of the black BenQ AK900ST 4K Short-Throw Laser Golf Simulator Projector with a central lens flanked by two smaller sensors.

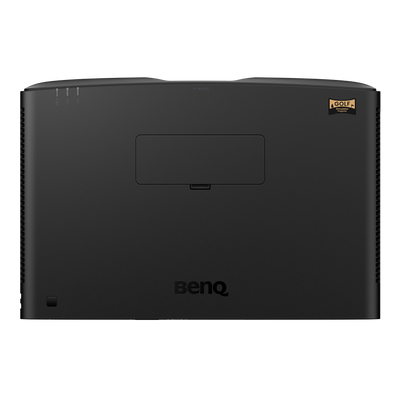

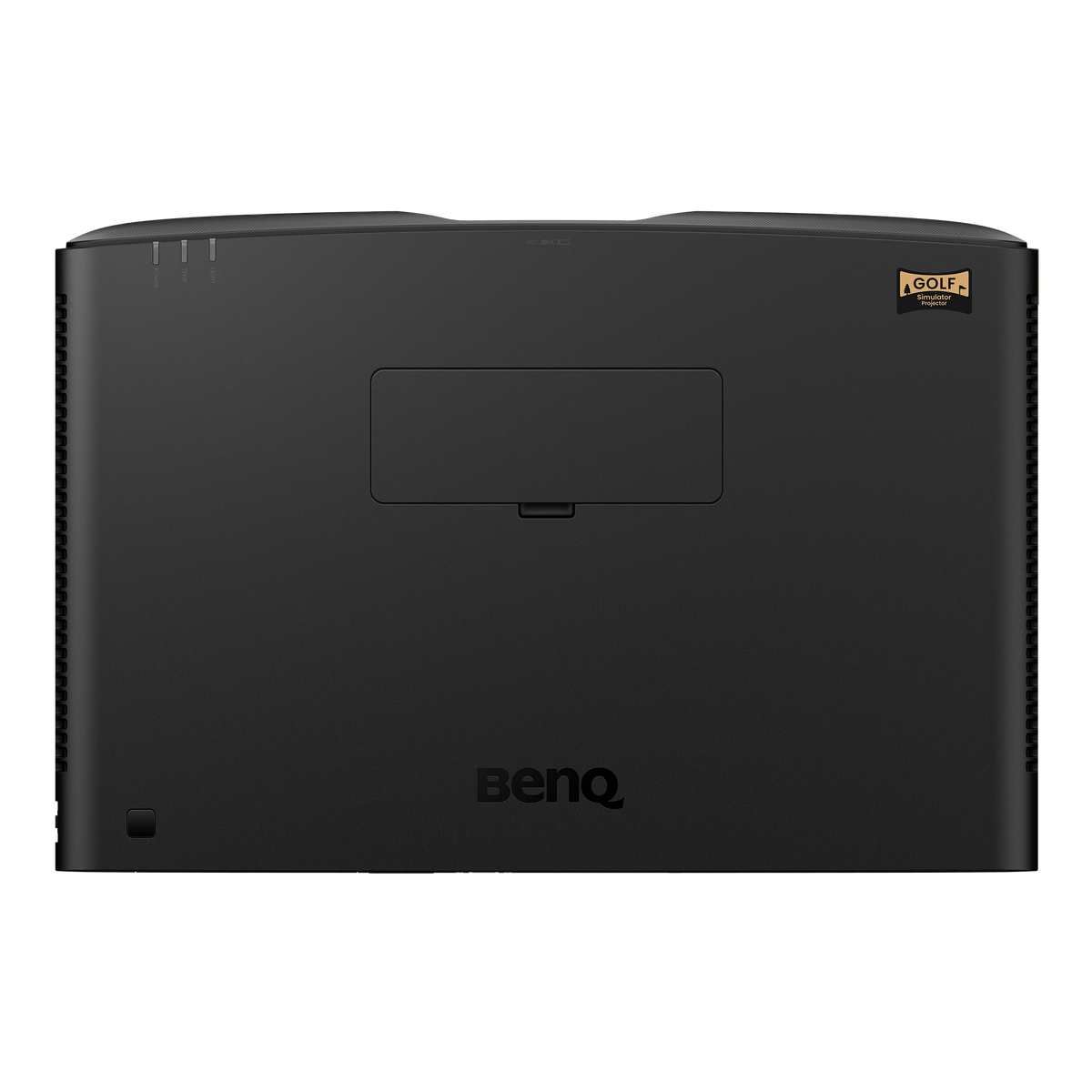

Top-down view of a black BenQ AK900ST 4K Short-Throw Laser Golf Simulator Projector – 6,000 Lumens with a Golf Simulator Projector sticker in the corner.

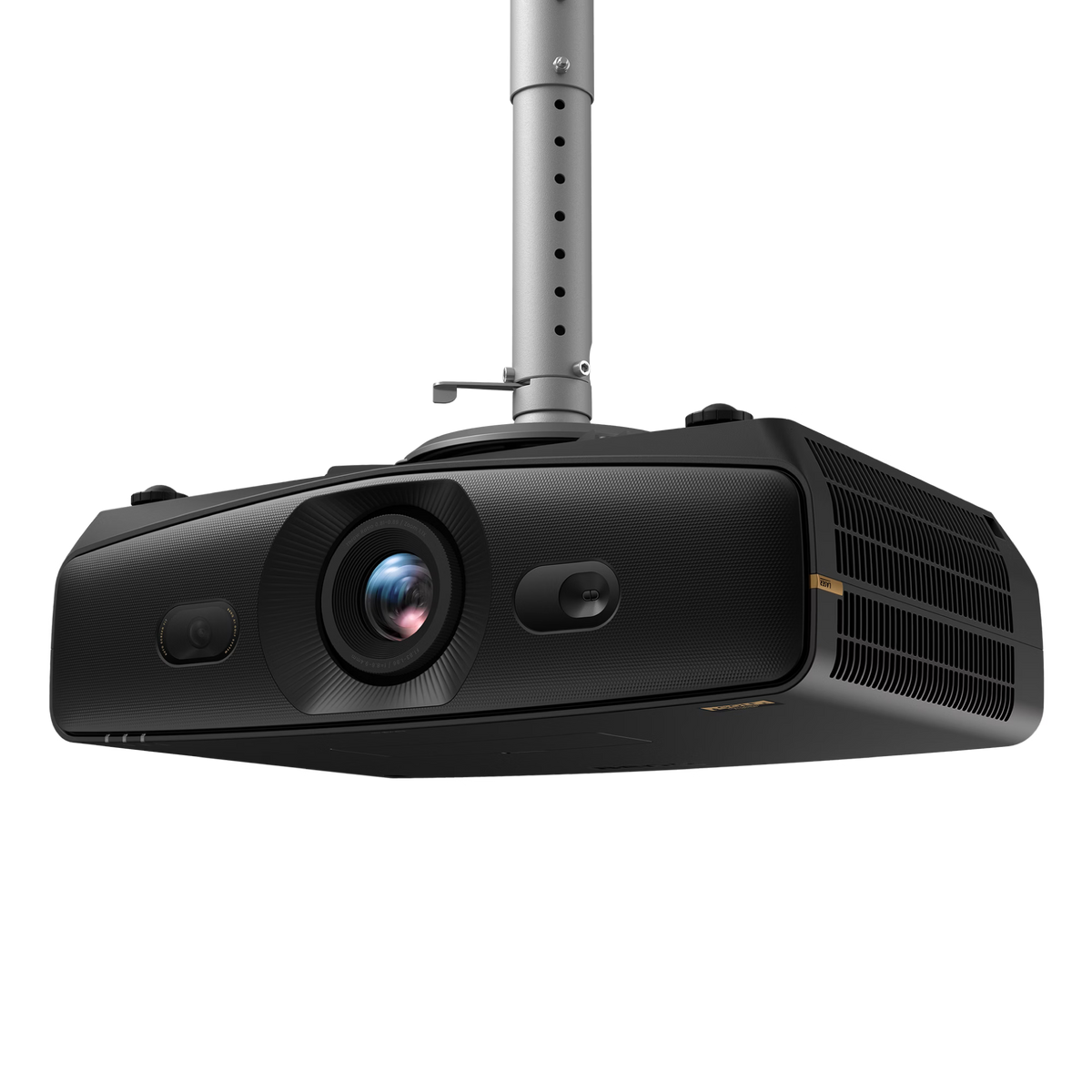

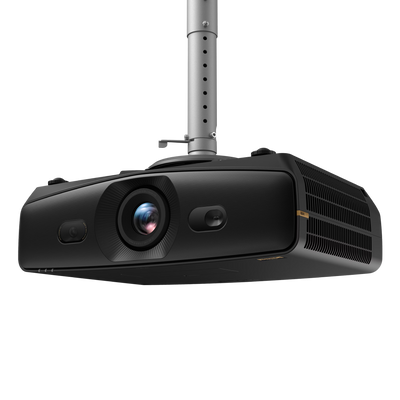

Black BenQ AK900ST 4K Short-Throw Laser Golf Simulator Projector mounted to a ceiling pipe for a golf simulator.

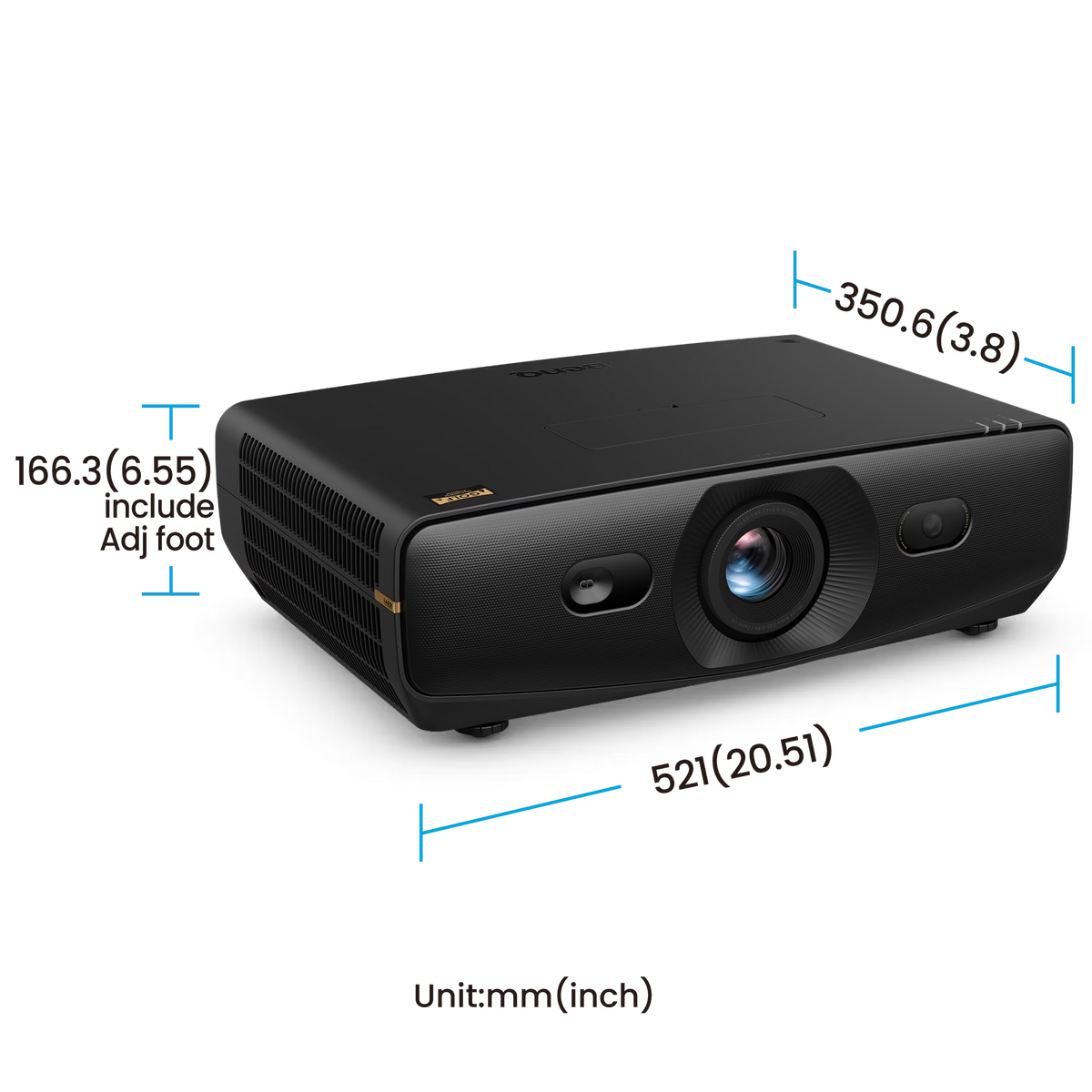

Black BenQ AK900ST 4K Short-Throw Laser Golf Simulator Projector with a front-facing lens and measurement lines indicating its height, width, and depth in millimeters and inches.

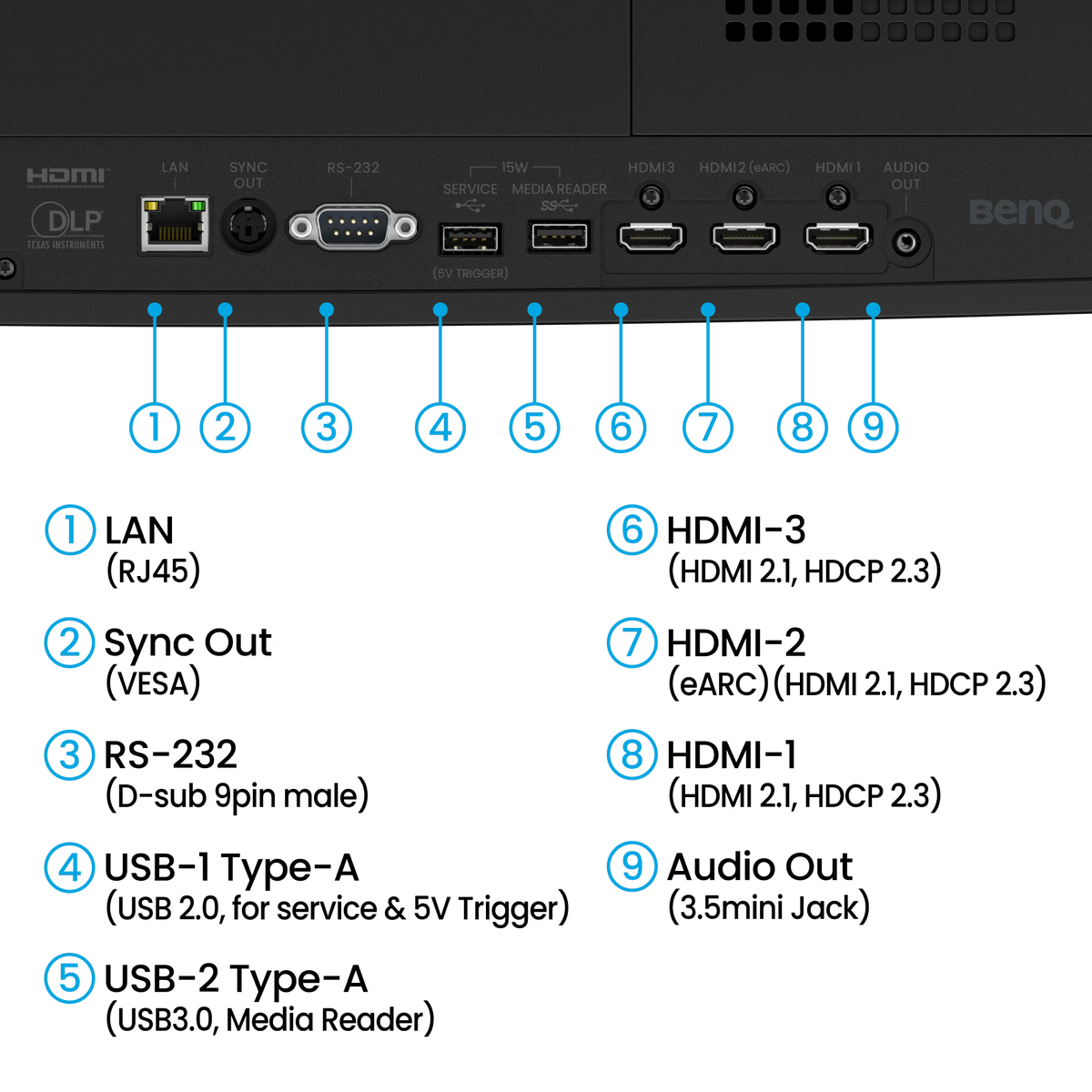

Diagram showing the rear connection ports of the BenQ AK900ST 4K Short-Throw Laser Golf Simulator Projector, including labels for LAN, Sync Out, RS-232, two USB-A ports, three HDMI ports, and an audio output jack.

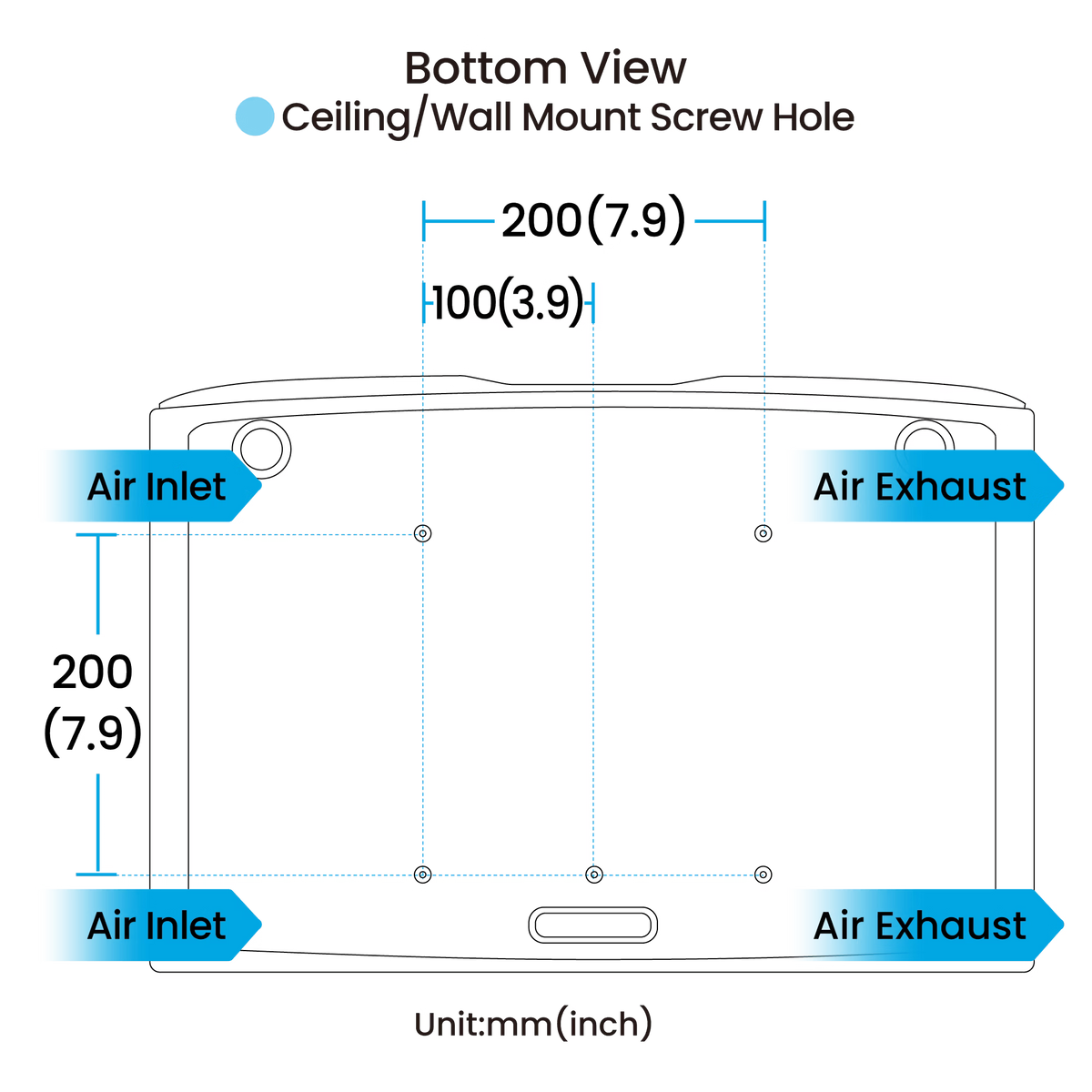

Bottom view of the BenQ AK900ST 4K Short-Throw Laser Golf Simulator Projector showing air inlets, exhausts, and the four screw holes for mounting with 200 by 100 millimeter dimensions.

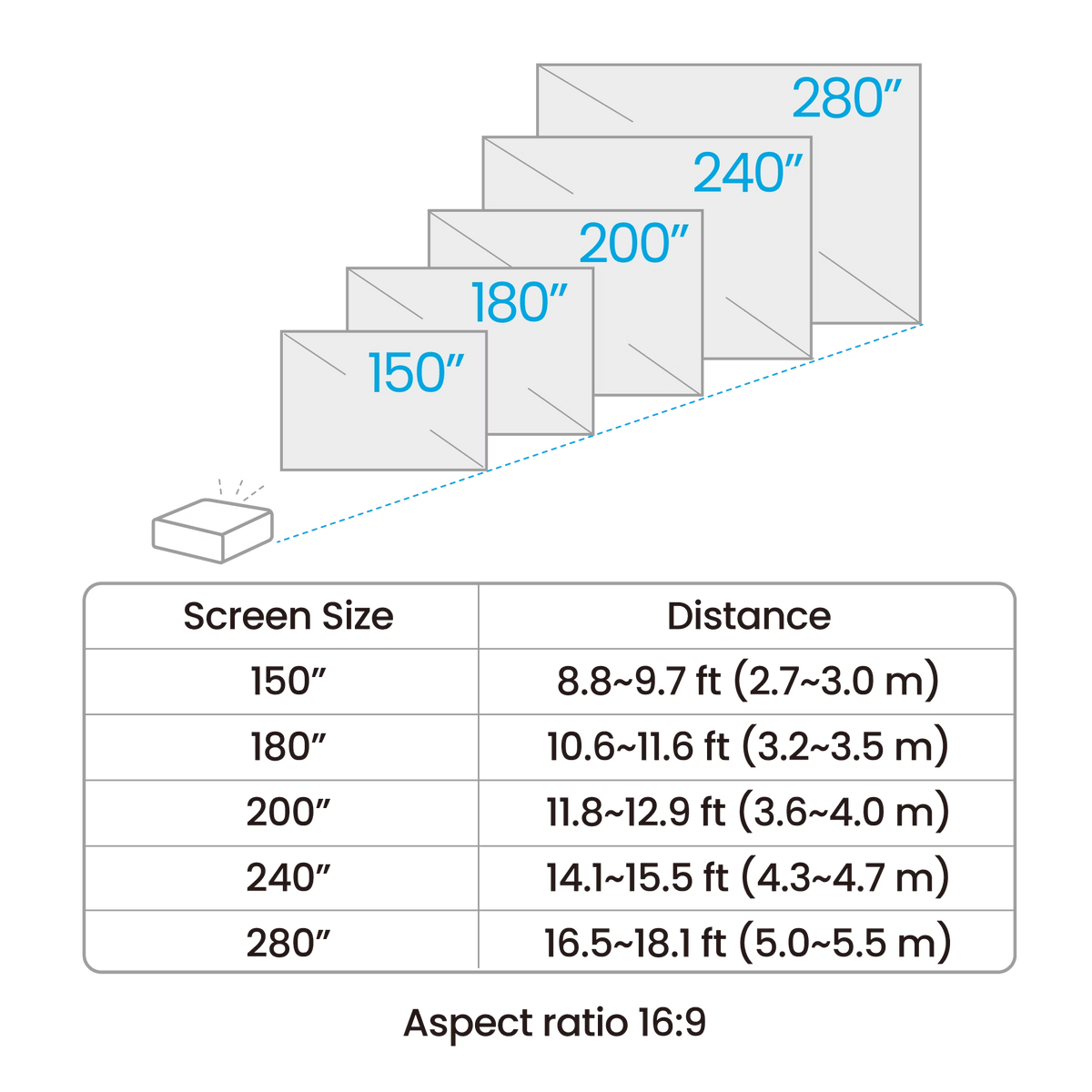

Diagram illustrating throw distances for the BenQ AK900ST 4K Short-Throw Laser Golf Simulator Projector on screen sizes from 150 to 280 inches, including a table with 16:9 aspect ratio measurements in feet and meters.

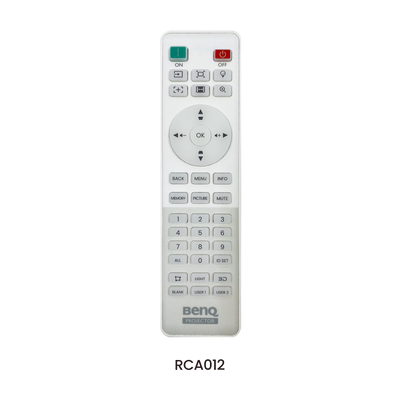

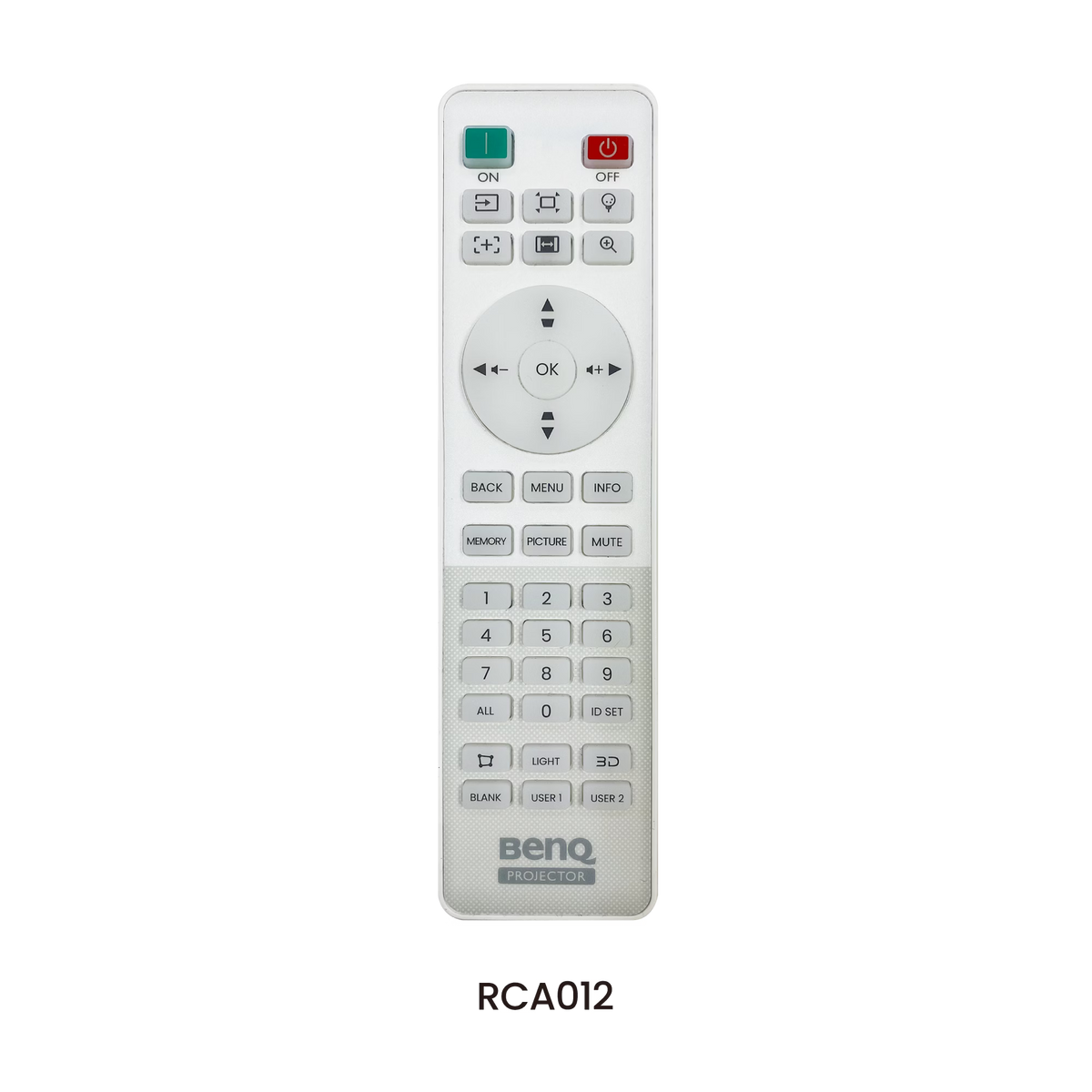

White BenQ AK900ST 4K Short-Throw Laser Golf Simulator Projector remote control featuring navigation arrows, a number pad, and function buttons.

Vendor:Benq

BenQ AK900ST 4K Short-Throw Laser Golf Simulator Projector – 6,000 Lumens

$8,219.00

*New: October 2026

  • World's First AI Golf Projector: AI Sim Sense visuals and setup.
  • Built for Grand Spaces: 4K 6000lm Golf Mode color and optical lens shift.
  • Auto Screen Fit 2.0: One-press curved and flat screen alignment.

The BenQ AK900ST is a high-performance 4K laser projector designed for premium residential and commercial golf simulator installations. Delivering 6,000 ANSI lumens, true 4K UHD resolution and golf-specific image processing, it produces a bright, highly detailed image suitable for large impact screens and rooms with higher ambient light.

BenQ’s AI Sim Sense technology enhances golf simulator content using dedicated AI processing. It improves contrast, sharpness, colour and fine course details while reducing noise and unwanted visual artifacts.

Installation is simplified through Auto Golf Screen Fit 2.0, motorized autofocus and automatic ambient-light adjustment. The built-in camera detects the shape and dimensions of the impact screen—including flat and curved configurations—and automatically fits the image to the screen.

The AK900ST also includes substantial vertical and horizontal lens shift, providing added flexibility when the projector cannot be installed directly in line with the centre of the screen. This is particularly useful in commercial facilities, multipurpose rooms and simulator installations involving launch monitors or other ceiling-mounted equipment.

With its 6,000-lumen output, flexible lens controls and dedicated Golf, Bright Golf and HDR Golf modes, the AK900ST is positioned for simulator rooms where image brightness, installation flexibility and premium 4K performance are priorities.

Out of stock

Accessories

Availability and lead times vary by product.

Personal guidance from SimCaddy before and after your purchase.

Manufacturer warranty included where applicable.

Canada-wide shipping - free on most items.

Blog Article: BenQ Raises the Bar for Golf Simulator Projectors – SimCaddy

Key Features

  • True 4K UHD resolution with 8.3 million pixels
  • 6,000 ANSI lumens
  • Short-throw 0.81–0.89 throw ratio
  • 1.1× optical zoom
  • Vertical and horizontal lens shift
  • BenQ AI Sim Sense image processing
  • AI Picture Quality, AI Super Resolution and AI Noise Reduction
  • Auto Golf Screen Fit 2.0
  • Automatic screen detection for flat and curved impact screens
  • One-touch motorized autofocus
  • Automatic ambient-light image adjustment
  • Dedicated Golf, Bright Golf and HDR Golf picture modes
  • 97% Rec. 709 colour coverage
  • 3,000,000:1 dynamic contrast ratio
  • Up to 30,000-hour laser-light-source life
  • Low input lag for responsive simulator and gaming performance
  • Three HDMI inputs
  • Integrated speaker and woofer
  • Wireless projection support with optional wireless adapter

Technical Specifications

Display

Brightness (ANSI lumens) 6000

Resolution 4K UHD (3840×2160)

Native Aspect Ratio 16:9

Contrast Ratio (FOFO) 3,000,000:1

Display Color 30-bit (1.07 billion colors)

Light Source Laser

Light Source Life a. Normal 20000 hrs, b. ECO 30000 hrs, c. SmartEco 20000 hrs

Screen Fill 16:9/16:10/3:2/4:3/5:4/1:1

Quick Focus Yes

Optical

Throw Ratio 0.81~0.89

Zoom Ratio 1.1x

Lens F# :1.83~1.86 f=8.6mm~9.4mm

Keystone Adjustment 3D, Vertical ± 30 degrees; Horizontal ± 30 degrees; Rotation ± 30 degrees

Lens Shift Vertical ±60%

Lens Shift Horizontal ±23%


Rec. 709 Coverage 97%

Picture Modes Bright Golf, Bright Presentation, HDR Golf, Bright, Cinema, Game, Golf, HDR, HDR Game, HDR10, HLG, Sports, User

Compatibility

Input Lag 18.1ms (4K 60Hz), 18.6ms (1080P 60Hz), 4.8ms (1080P 240Hz), 9.7ms (1080P 120Hz)

Resolution Support VGA (640 x 480) to 4K UHD (3840 x 2160)

Horizontal Frequency 15K~270KHz

Vertical Scan Rate 23~240Hz

I/O Interface

HDMI in HDMI-1 (2.1/HDCP2.3) (4K 60Hz/ALLM), HDMI-2 (2.1/HDCP2.3) (4K 60Hz/ALLM/Audio Return+), HDMI-3 （HDCP2.3）, (x3)

LAN (RJ45) (x1)

USB Type A (x2), USB Type A-1 (3.0/Power Supply2.0A/Reader), USB Type A-2 (2.0/Power Supply1.5A)

RS232 in (DB-9pin) (x1)

Audio

Speaker (x1), 10W Chamber

Woofer 10W Chamber

Audio out (3.5mm Mini Jack) (x1)

HDMI Audio Returne ARC, 7.1 channel

Environment

Operating Temperature 0~40℃

Power Supply AC 100 to 240 V, 50/60 Hz

Typical Power Consumption (110V) 348.3W

Stand-by Power Consumption <0.5W

Network Stand-by Power Consumption <2W

Acoustic Noise (Typ./Eco.) (dB)34/29

Accessories

Wireless USB dongle EZC-5201BS (Wi-Fi/BT), (Optional)

Remote Control w/ Battery RCA012

Power Cord (by region) x1 (1.8M)

Quick Start Guide (x1) 1L

Warranty Card (by region) Yes

Universal Ceiling Mount CM00G3, (Optional)

Smart System

Wireless Projection Compatible with iOS mirroring, Google Cast, Miracast

Dimension & Weight

Dimensions (WxHxD) (mm) 521x166.3x350.6 mm

Net Weight (kg) 10.2Kg

Projection System

Projection System DLP
